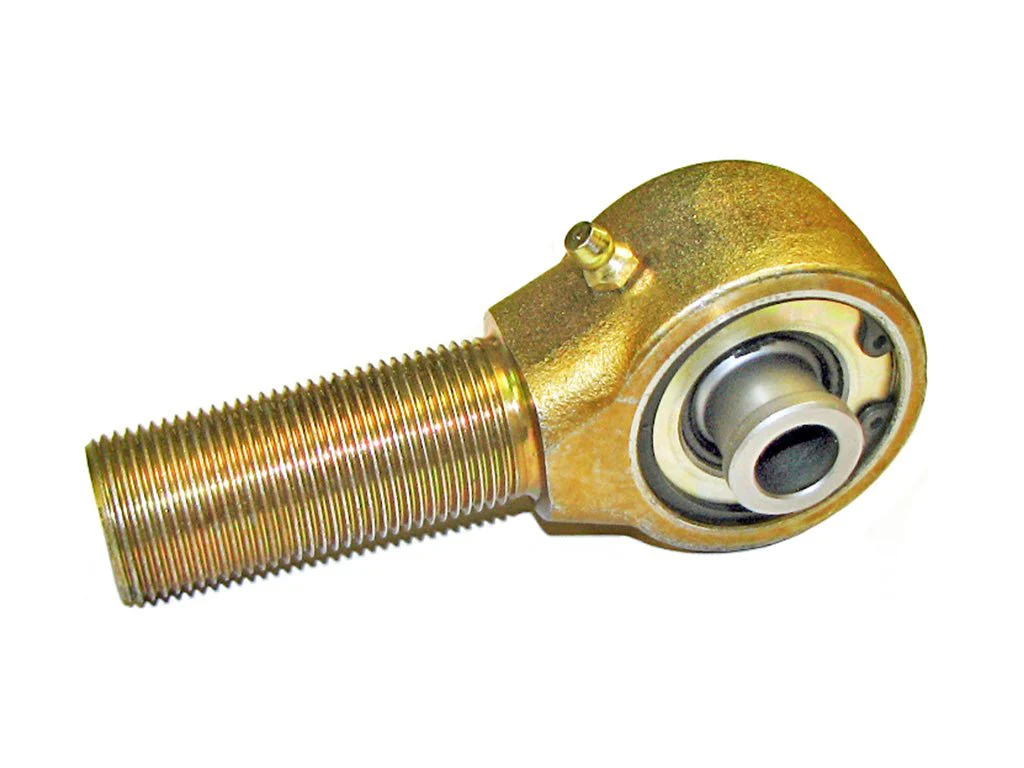

This narrow 2" forged Johnny Joint® is a male rod end that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a one piece high performance bushing, .625" thru hole, a 1.600" mounting width, 2 1/4" of 1"-14 right hand threads on the shank and is greasable through the outer shell. Finished in gold zinc plating.



Body Type	Forged Steel (Threaded)
Body Series	2 inch OD, Narrow Body
Body Width	1.2 inches
Thread Size	1 inch, 14 TPI
Thread Direction	Right Hand
Shank Length	2-1/4 inch
Mount Width	1.600 inches
Hole Diameter	.625 inch (5/8)
Misalignment	22° Total
Lubrication Method	External zerk fitting located on joint body
