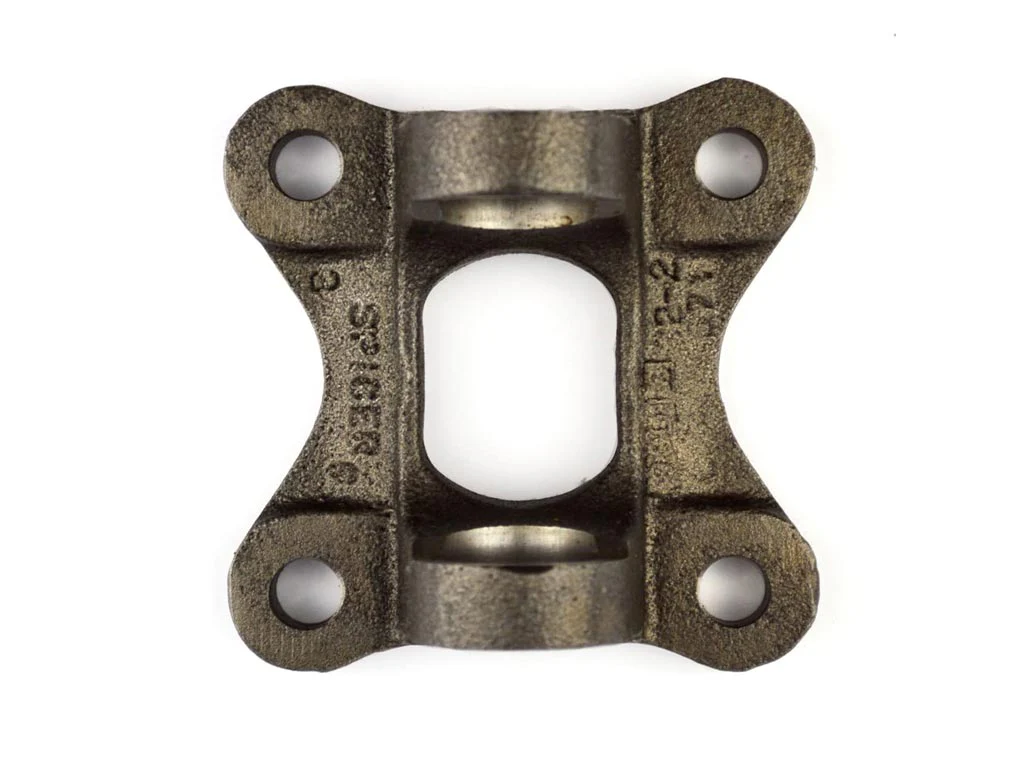

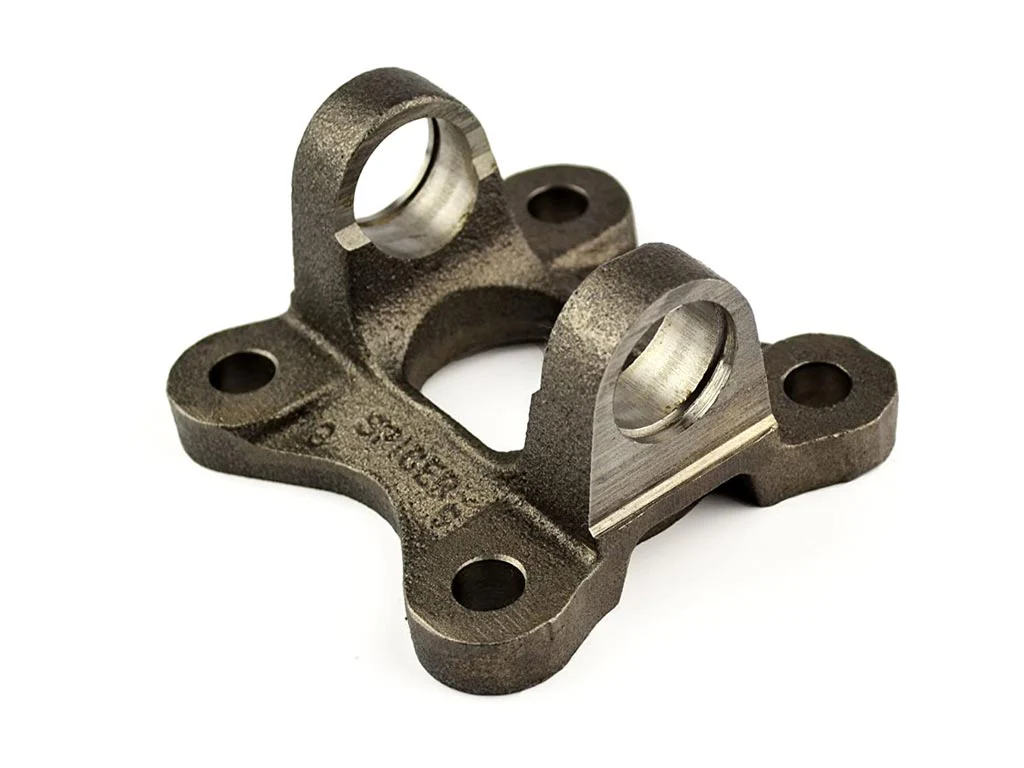

The Genuine Spicer 1310 Series Ford 8.8 Axle Flange Yoke has been designed to fit the large Ford 3" x 3"  bolt pattern found on many Ford 8.8 inch rear ends.

These are genuine Dana Spicer parts, not cheap parts store imitations! Trust only genuine Spicer parts on your 4x4.



Product Specifications

• Bolt hole diameter: .484 inches
• 4 Bolt holes
• Center pilot hole diameter: 2”
• Female center pilot hole
• Series 1310
• Outside snap ring style
• U-joint width between snap rings: 3.219”
• U-joint bearing cap diameter: 1.062”
• Center of u-joint bore to face of flange: 1.625”
• Ford large bolt pattern: 3”
