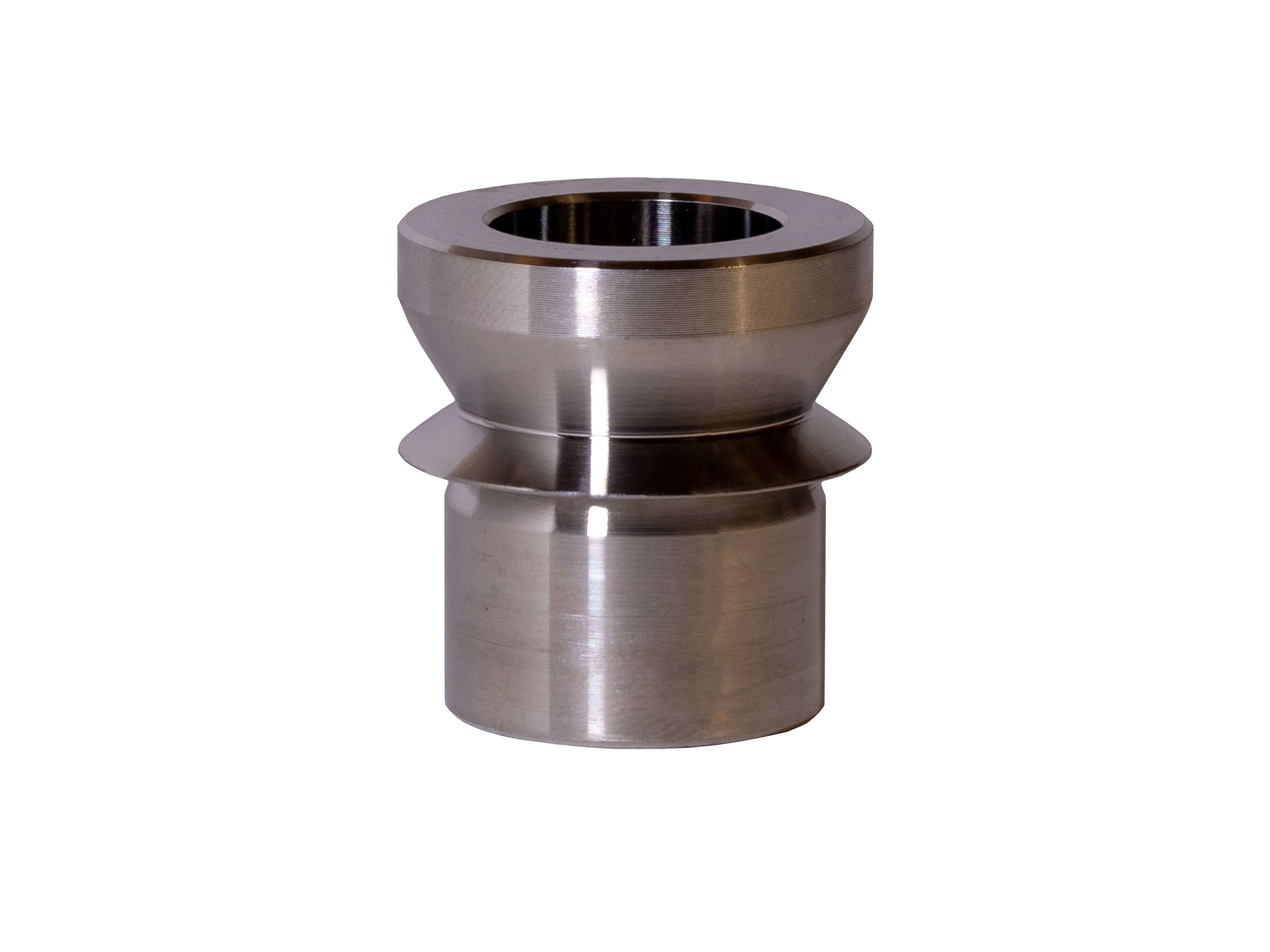

Rusty's High Misalignment Spacer (1" to 9/16") - For LCA Mounts
Priced Individually.
High Misalignment Series Spacers
Standard rod end spacers should only be used when the width of the ball is too narrow for an application. If more misalignment is required, high misalignment spacers should be used. They allow for more misalignment by continuing the spherical diameter of the ball and allowing the edge of the ball to rotate into the body. Stainless Steel
This spacer is specifically sized to work with 1.25" heims in stock lower control arm mounts. When paired up and used with a 1.25" heim, the total width is 2-5/8", which is the inside dimension of the lower control arm mounts on TJs, XJs, ZJs, and JKs. The I.D. of the high misalignment spacer is less than the original I.D. of the rod end, so a smaller bolt is required.
Ā
| Description | Part Number | Bearing Size | Shoulder | Bolt Size | Stack Height |
|---|---|---|---|---|---|
| 5/8" OD x 1/2" ID | SG10-84 | 5/8" | 0.496" | 1/2" | 1.74" |
| 3/4" OD x 1/2" ID | SG12-84 | 3/4" | 0.4435" | 1/2" | 1.76" |
| 3/4" OD x 9/16" ID | SG12-916 | 3/4" | 0.4435" | 9/16" | 1.76" |
| 3/4" OD x 5/8" ID | SG12-108 | 3/4" | 0.4435" | 5/8" | 1.76" |
| 7/8" OD x 5/8" ID | SG14-1010 | 7/8" | 0.5585" | 5/8" | 1.99" |
| 7/8" OD x 3/4" ID | SG14-1014 | 7/8" | 0.562" | 3/4" | 1.995" |
| 1" OD x 9/16" ID | SG25-100 | 1" | 0.62" | 9/16" | 2.616" |
| 1" OD x 5/8" ID | SG16-1012 | 1" | 0.62" | 5/8" | 2.616" |
| 1" OD x 3/4" ID | SG34-100 | 1" | 0.62" | 3/4" | 2.616" |
